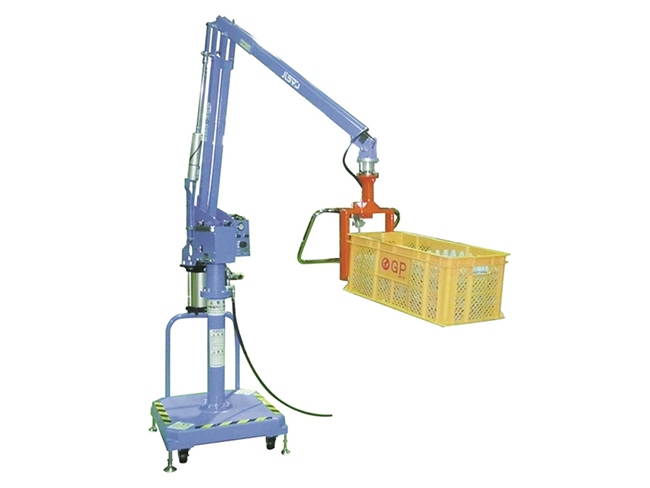

Hang Case1
Designed for handling plastic cases. Consists with a hook attachment that hooks the plastic case at one end. By using this end effector you can stack heavy plastic cases effortlessly.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMG-38W |
| Main Body options |
|
| Pedestal model | SNG-38W (Floor mobile) |
| Control method | Regulator control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 20kg |
|---|---|
| Max. working radius | R2375mm |
| Operating air pressure | 0.49MPaG |
| Air consumption | 70NL/min（Approx. 10s cycle time） |
| Net weight(W/P not included) | 518.3kg |
1kg≒2.205lb, 1mm≒0.03937in
