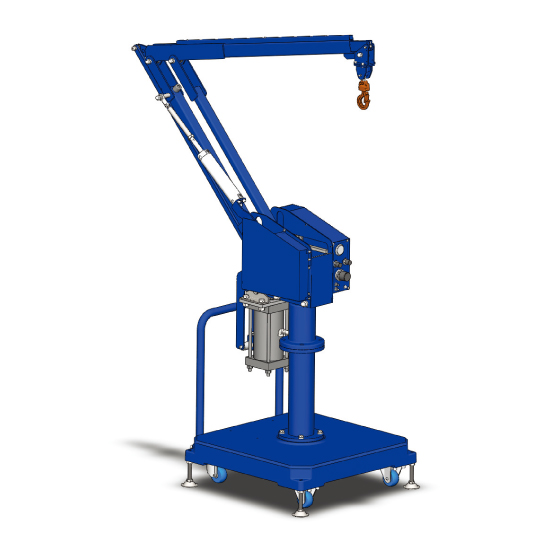

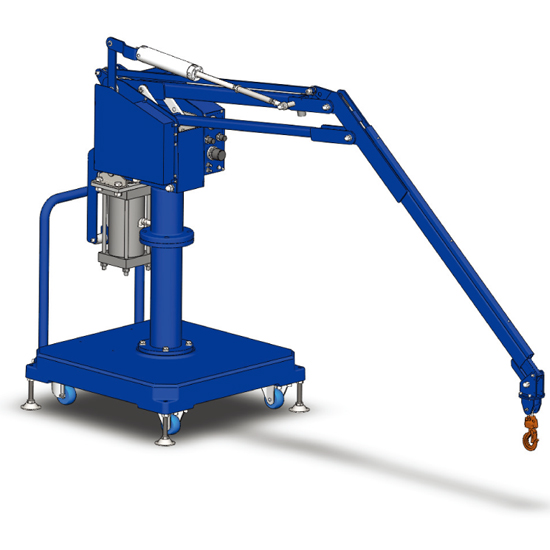

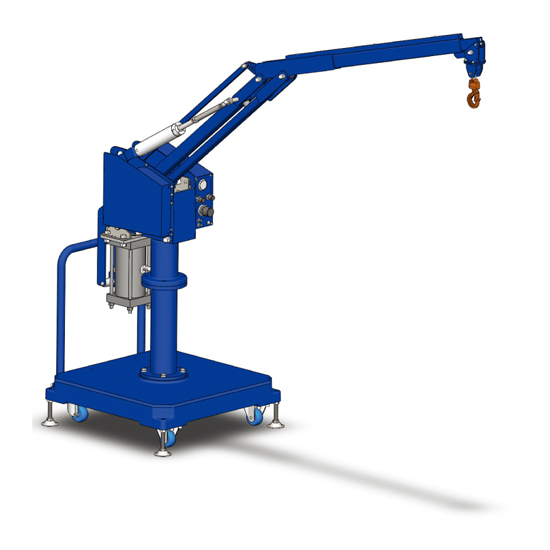

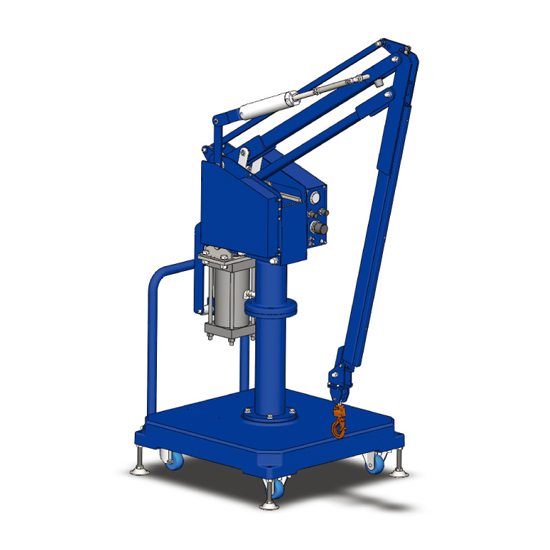

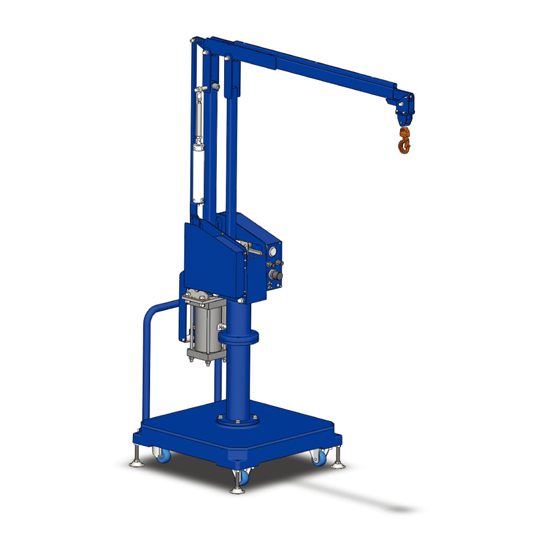

BMG (Low ceiling model)

Even with limitations in ceiling height, the BMG is highly useful and effective in transporting material.

The maximum arm height is low relative to the working height, making it ideal for work in areas with low ceilings.
Used by many customers because of the compact design and ease of use, particularly for applications such as moving cardboard boxes and bags.

  • Pneumatic type
  • Fixed type base
  • Mobile type base
  • Suspended load 30kg
  • Suspended load 38kg
  • Suspended load 50kg
  • Suspended load 75kg
  • Suspended load 150kg
  • Prev
  • Next

Specification

  • Overview
  • Enlarged
ModelMax.load
[kg (lb)]
Max.working radius
[mm (in)]
Up and down stroke
[mm (in)]
Air consumptionApprox. Mass
[kg (lb)]
Outline drawing
[PDF]
Nℓ/minCycle time
[sec]
BMG-30W30 (66.2)R1905 (R75.0)1600 (63.0)4810100 (220.5)*Floor mount model
*Floor mobile model
BMG-38S38 (83.8)R2375 (R93.5)2000 (78.7)7510100 (220.5)*Floor mount model
*Floor mobile model
BMG-38W38 (83.8)R2375 (R93.5)2000 (78.7)7510140 (308.7)*Floor mount model
*Floor mobile model
BMG-50W50 (110.3)R1905 (R75.0)1600 (63.0)7510135 (297.7)*Floor mount model
*Floor mobile model
BMG-75W75 (165.4)R2220 (R87.4)1600 (63.0)12210220 (485.1)*Floor mount model
*Floor mobile model
BMG-150W150 (330.8)R2220 (R87.4)1600 (63.0)19110290 (639.5)*Floor mount model
*Floor mobile model
Air pressure used: 0.49MPaG
For detailed dimensions, see PDF download.
