External Clamp Case4

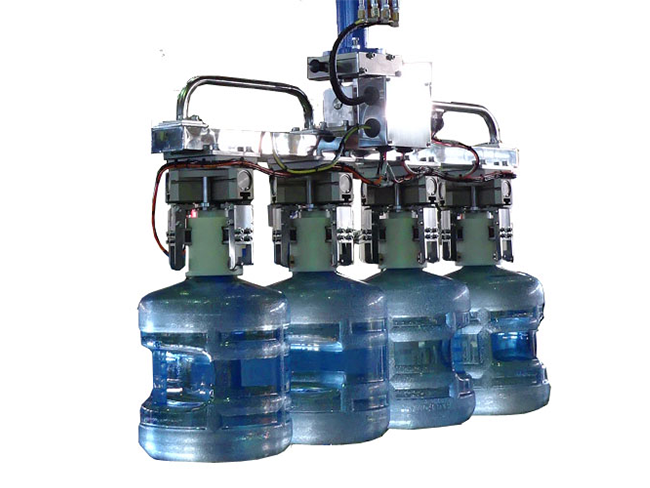

Designed for moving 4 gallon bottles simultaneously to water dispensers. As in this case, having multiple goods handled at once will greatly improve the work efficiency.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-125 |
| Main Body options |
|
| Pedestal model | SNS-125(Floor mobile) (Special) ・Bracket mounted for Fork insert |
| Control method | Pneumatic auto sensing control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 48kg（12kg×4） |
|---|---|
| Max. working radius | R2390mm |
| Operating air pressure | 0.54MPaG |
| Air consumption | 134NL/min（Approx. 15s cycle time） |
| Net weight(W/P not included) | 821kg |
1kg≒2.205lb, 1mm≒0.03937in
