Vacuum Suction Case13

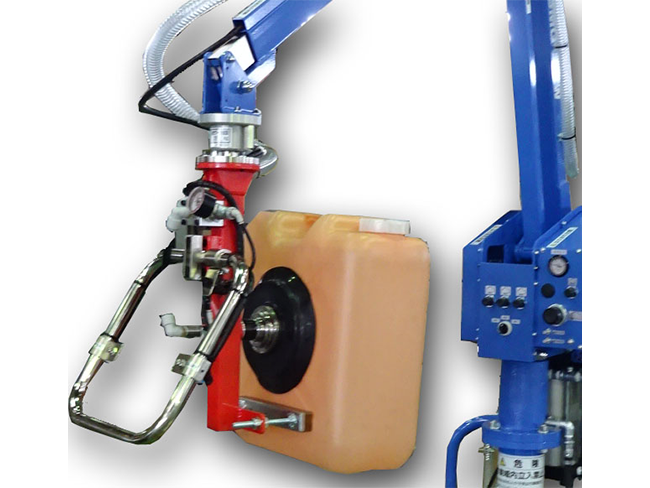

Designed this manipulator for handling plastic containers by vacuuming the side surface. Since 3 weights can be pre-set, 3 distinguish workpieces can be handled in a balance state by simply changing the settings with a switch.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMG-50W |
| Main Body options |
|
| Pedestal model | SNG-50W(Floor mobile)(Special) ・Caster, Stainless steel Jack bolts (Ratchet type) ・Vacuum Pump mounted |
| Control method | Regulator control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 25kg |
|---|---|
| Max. working radius | R1905mm |
| Operating air pressure | 0.49MPaG |
| Air consumption | 75NL/min（Approx. 10s cycle time） |
| Power supply | AC200V 50/60Hz AC220V-60Hz |
| Rated current | 5.29/4.87A 4.63A |
| Net weight(W/P not included) | 512.5kg |
1kg≒2.205lb, 1mm≒0.03937in
