Internal Clamp Case 5

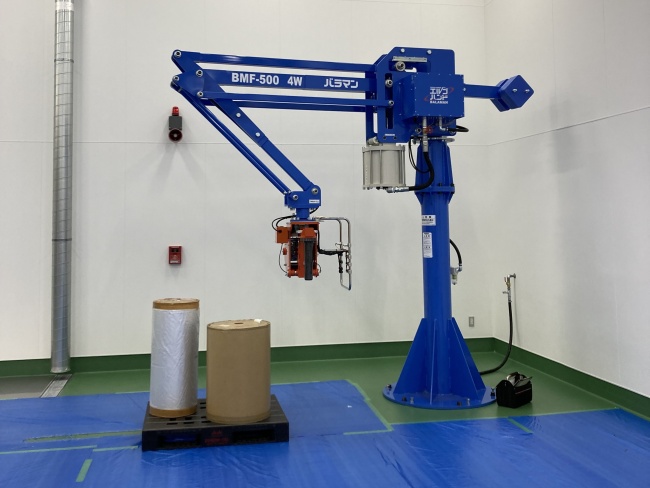

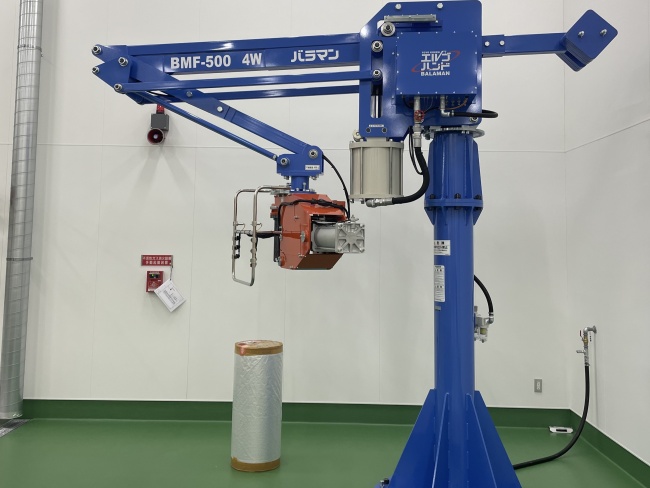

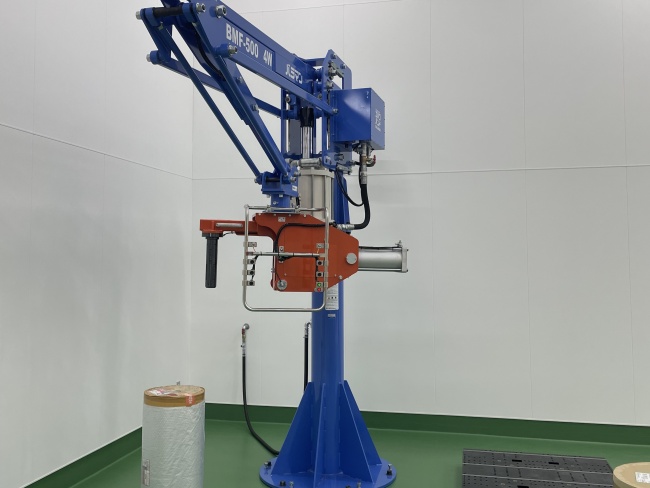

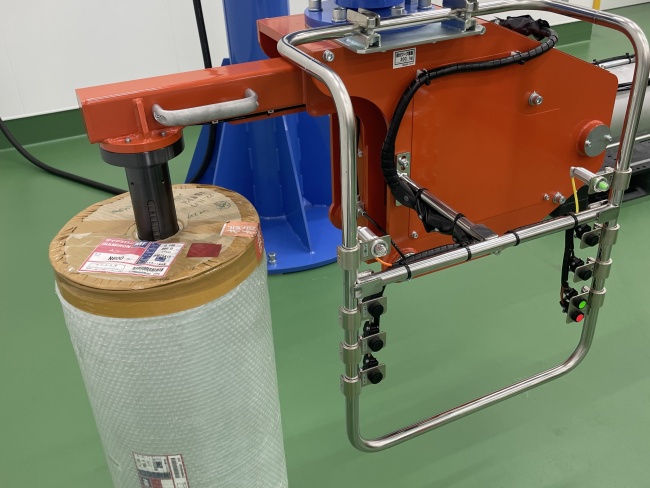

Our team engineered this advanced manipulator to safely and efficiently handle heavy, cumbersome reels in a specialized industrial environment. Equipped with a custom-designed end effector, it enables lifting and rotation of reels weighing up to 300kg, ensuring both safety and ergonomics.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMF-500 |
| Main Body options |
|
| Pedestal model | FSF-500W-K (Floor mount) |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 300kg |
|---|---|
| Max. working radius | R2870mm |
| Operating air pressure | 0.60MpaG |
| Air consumption | 244NL/min（Approx. 30s cycle time） |
1kg≒2.205lb, 1mm≒0.03937in
