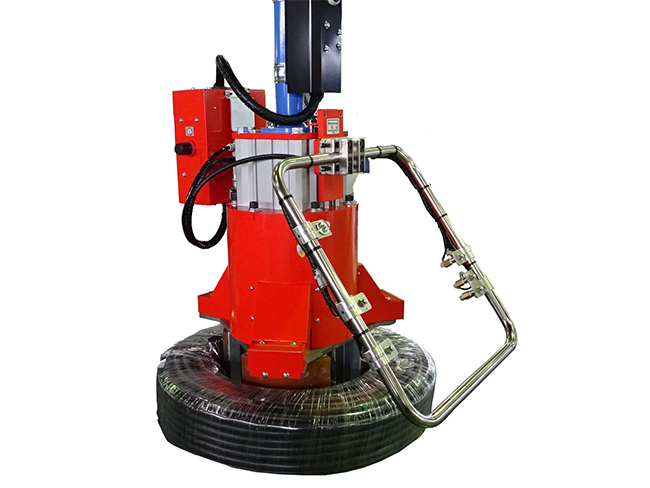

Internal Clamp Case2
Designed for handling cable rolls. It is designed to handle inner diameter sizes that ranges from Φ250mm to 350mm.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-125 |
| Main Body options |
|
| Pedestal model | FSS-125（Floor mount） |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 55kg |
|---|---|
| Max. working radius | R2190mm |
| Operating air pressure | 0.54 MPaG |
| Air consumption | 134NL/min（Approx. 15s cycle time） |
| Net weight(W/P not included) | 364kg |
1kg≒2.205lb, 1mm≒0.03937in
