Hang Case3

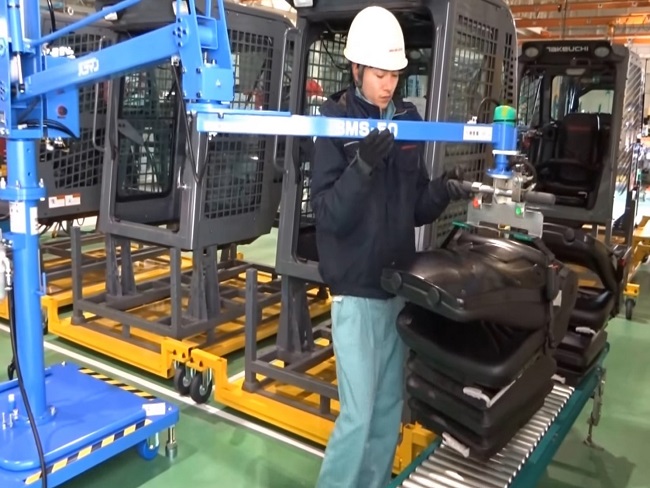

This one is used for installing seats in the cabin of a small excavator. End effector hooks the seat belt with a specially designed hook and place the seat inside the cabin by making use of the 2nd arm's long reach.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-50 |
| Main Body options |
|
| Pedestal model | SNS-50(Floor mobile) |
| Control method | Pneumatic auto sensing control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 35kg |
|---|---|
| Max. working radius | R2118mm |
| Operating air pressure | 0.54MPaG |
| Air consumption | 94NL/min（Approx. 10s cycle time） |
| Net weight(W/P not included) | 543.5kg |
1kg≒2.205lb, 1mm≒0.03937in
