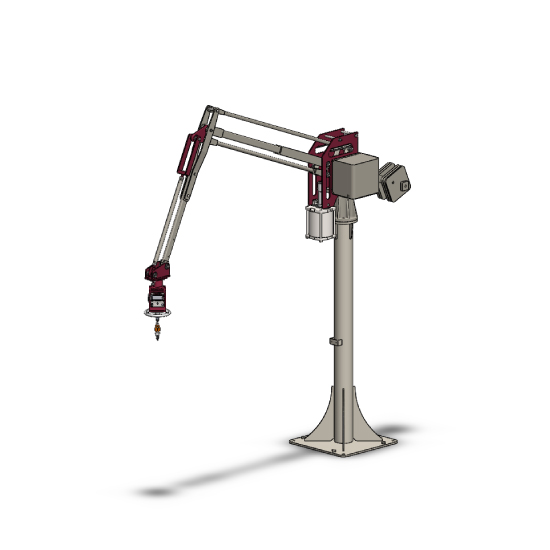

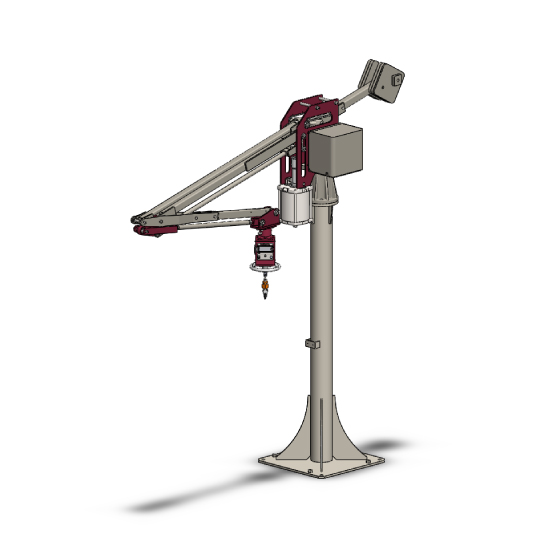

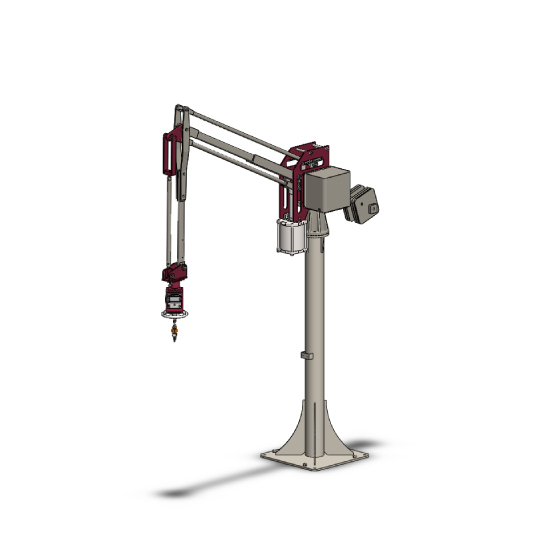

U2BMF (Floor model)
Easy-to-handle with a standard single axis swivel arm.
We also offer the U2BMF (floor-mount) Series and the U2BMC (ceiling-mount) Series.
The main body is the same as the Pneumatic Balaman with a “U” at the beginning of the model name.
This series has the widest offering from small to large.
There are two types of arm structures: a double-link that keeps the attachment horizontal and a single-link that uses hooks or other devices.
These models allow for wide area handling, and with 1 axis of rotation of the main body, it is most suited to areas where there is ample ceiling height.
- Prev
- Next
Specification
- Overview
- Enlarged
| Model | Max.load [kg (lb)] | Max.working radius [mm (in)] | Up and down stroke [mm (in)] | Air consumption | Approx. Mass [kg (lb)] | Outline drawing [PDF] | |
|---|---|---|---|---|---|---|---|
| Nℓ/min | Cycle time [sec] | ||||||
| U2BMF-75W | 56 (123.5) | R2240 (R88.2) | 1520 (59.8) | 102 | 10 | 200 (441.0) | *Floor mount model *Floor mobile model |
| U2BMF-150W | 126 (277.8) | R2240 (R88.2) | 1520 (59.8) | 181 | 10 | 275 (606.4) | *Floor mount model *Floor mobile model |
Power supply: Single phase AC85-264V 50/60Hz
Electrical consumption: 0.1kVA (common to all models)
Detailed dimensions are available in PDF download.
