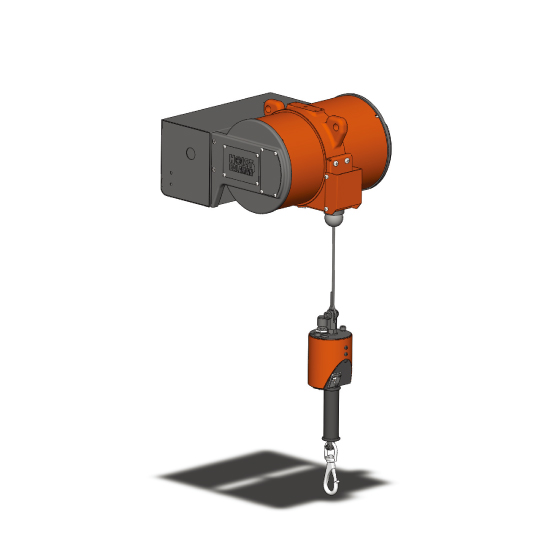

BMH (Hoist)

Get superior working range and flexibility when combining with a ceiling rail system.

With the combine ceiling rail system, you can dramatically increase the area of coverage beyond just the stationary arm type.
Suspending from the ceiling significantly reduces need for floor space.

  • Pneumatic type
  • Suspended load 30kg
  • Suspended load 60kg
  • Suspended load 90kg
  • Suspended load 130kg
  • Prev
  • Next

Specification

  • Overview
  • Enlarged
ModelMax.load
[kg (lb)]		Up and down stroke
[mm (in)]		Air consumptionApprox. Mass
[kg (lb)]		Outline drawing
[PDF]
Nℓ/minCycle time
[sec]
BMH-3030 (66.2)1500 (59.1)531025 (55.1)*
BMH-6060 (132.3)1500 (59.1)801035 (77.2)*
BMH-9090 (198.5)2000 (78.7)951545 (99.2)*
BMH-130130 (286.7)2000 (78.7)1461550 (110.3)*
Air pressure used: 0.49MPaG
For detailed dimensions, see PDF download.
