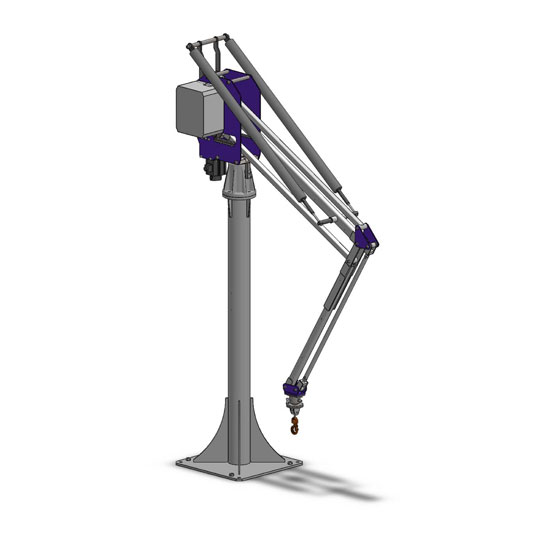

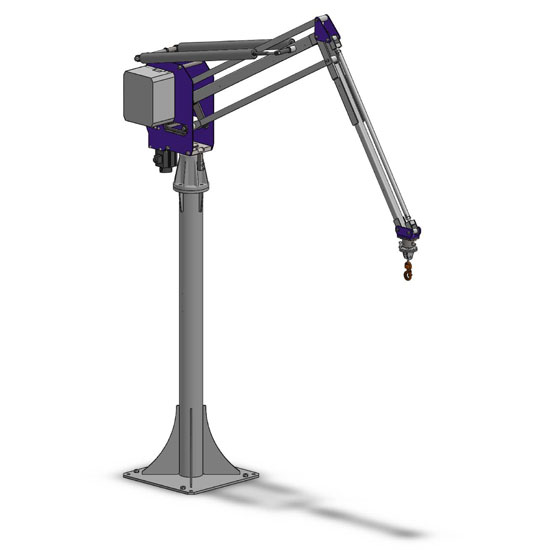

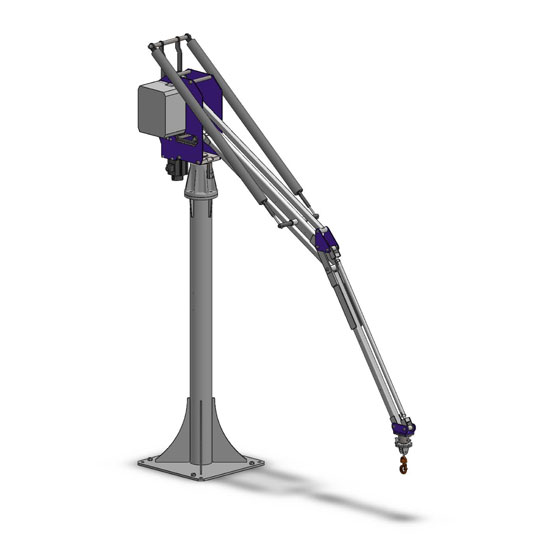

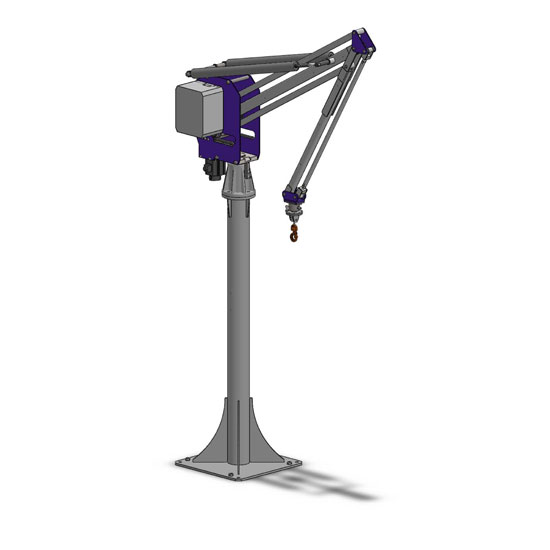

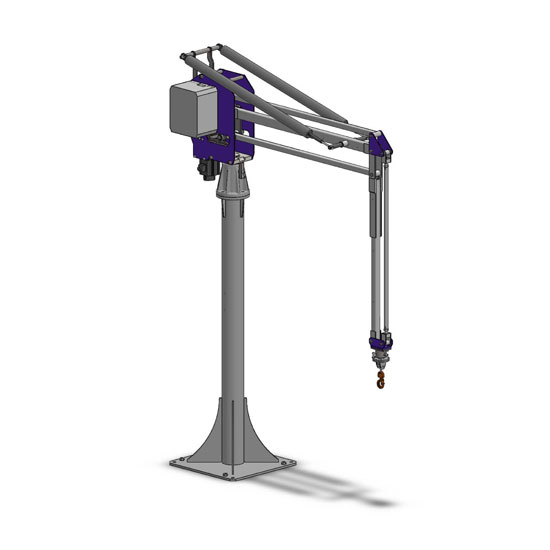

BMi2F (Floor model)
Easy-to-handle with a standard single axis swivel arm.
We also offer the BMi2F floor mount model and the BMi2C Series.
These models allow for wide area handling, and with 1 axis of rotation of the main body, this is most suited to areas where there is ample ceiling height.
- Prev
- Next
Specification
- Overview
- Enlarged
| Model | Max.load [kg (lb)] | Max. machine height [mm (in)] | Max.working radius [mm (in)] | Up and down stroke [mm (in)] | Lifting speed [mm/sec (in/sec)] | Electric consumption [kVA ] | Approx. Mass [kg (lb)] | Outline drawing [PDF] | ||
|---|---|---|---|---|---|---|---|---|---|---|
| With balancing function | Crane | |||||||||
| Hook | End Effector | |||||||||
| BMi2F-100 | 100 (220.5) | 88 (194.0) | 100 (220.5) | 3761 (148.1) | R2150 (R84.6) | 1500 (59.1) | 500 (19.7) | 2.3 | 205 (452.0) | *Floor mount model *Floor mobile model |
| BMi2F-180 | 180 (396.9) | 168 (370.4) | 180 (396.9) | 3925 (154.5) | R2315 (R91.1) | 1500 (59.1) | 400 (15.7) | 2.5 | 265 (584.3) | *Floor mount model *Floor mobile model |
For detailed dimensions, please download the PDF drawing.
