Fork Case 4

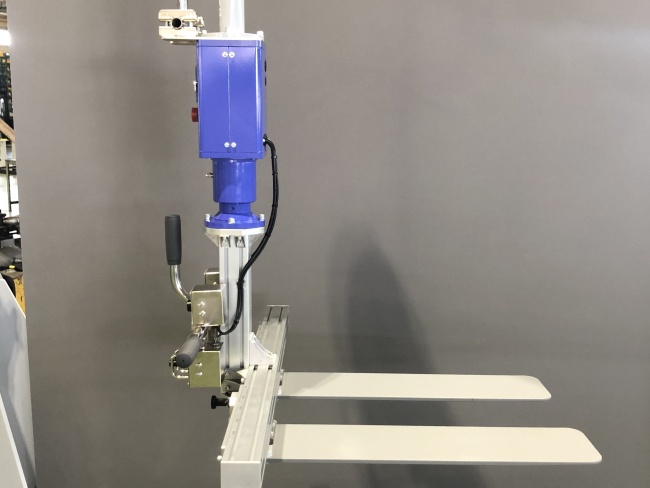

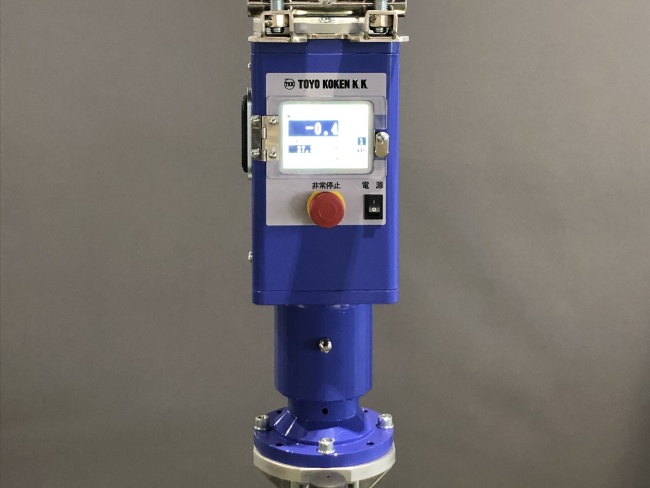

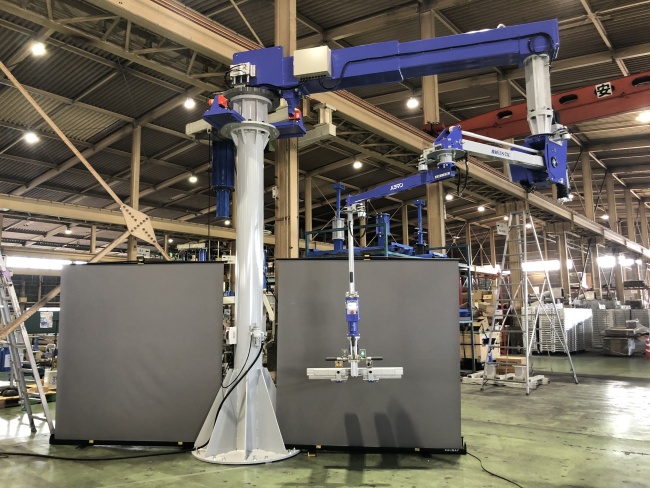

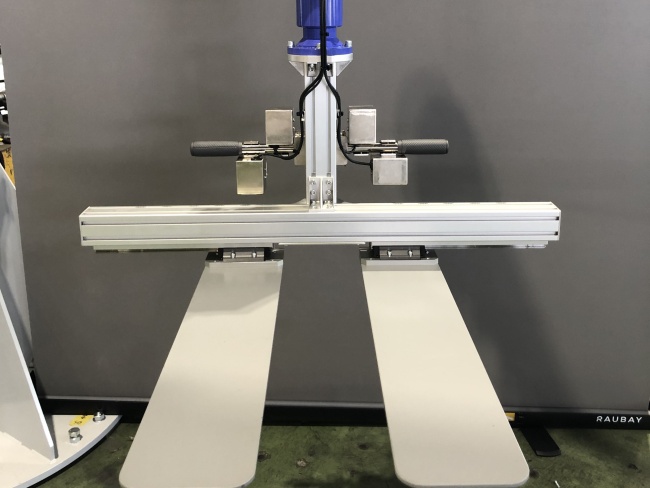

This unique Electric manipulator, custom-made to match the customer's special environment where the entire manipulator needs to be moved after handling workpieces, is equipped with a special swivel base and has the ability to handle workpieces up to 30kgs.
- Prev
- Next
Specification
| Type | Electric BALAMAN (i2 Series) |
|---|---|
| Model | BMi2-75C |
| Main Body options |
|
| Pedestal model | CSS-75+ Jib Crane |
| Control method | Crane & Balance |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 30kg |
|---|---|
| Max. working radius | R2685mm |
| Operating air pressure | 0.50MpaG |
| Air consumption | 50NL/min（Approx. 15s cycle time） |
| Power supply | Three phase AC200/220V±10% |
| Net weight(W/P not included) | 1800kg |
1kg≒2.205lb, 1mm≒0.03937in
