Hang Case2

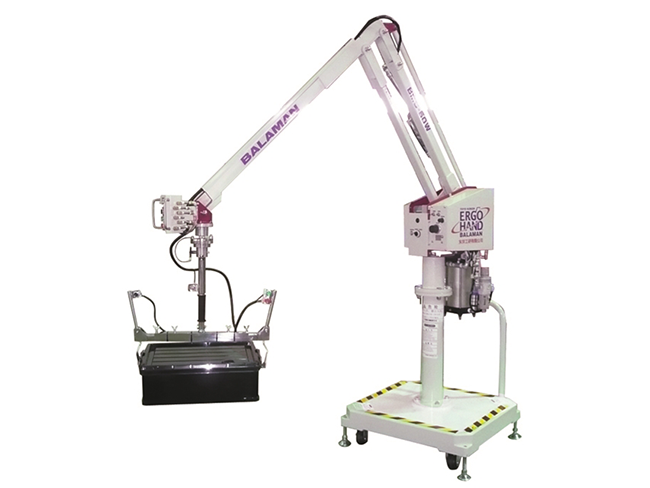

Designed for handling plastic cases. Consists with two hook attachments and use them to hook the plastic case at both ends. By using this end effector you can stack heavy plastic cases effortlessly.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMG-50W |
| Main Body options |
|
| Pedestal model | SNG-50W(Floor mobile) |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 15kg |
|---|---|
| Max. working radius | R1905mm |
| Operating air pressure | 0.49MPaG |
| Air consumption | 88NL/min（Approx. 10s cycle time） |
| Net weight(W/P not included) | 511kg |
1kg≒2.205lb, 1mm≒0.03937in
