Hook Case 2

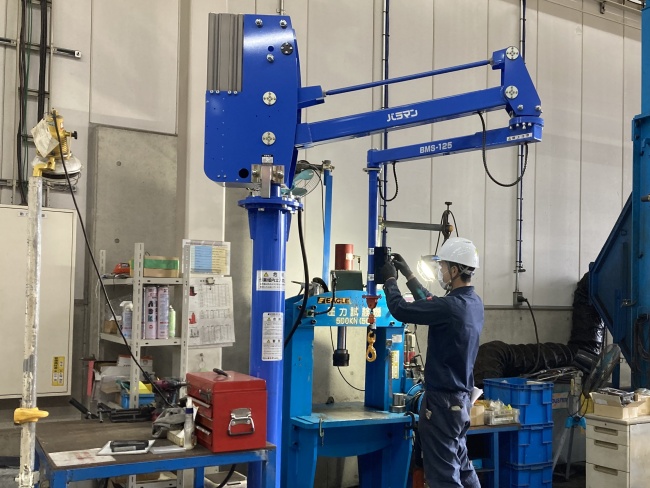

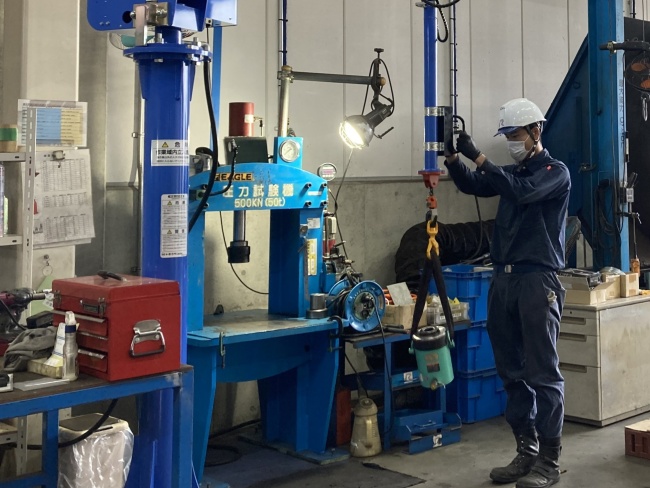

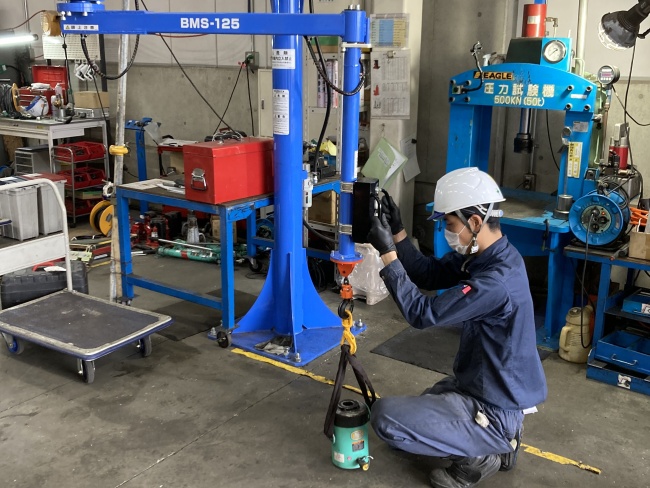

This is an all-standard pneumatic manipulator, designed to handle various internal components of industrial lifting equipment during periodic inspections. Featuring a simple hook-and-belt end effector, it ensures both versatility and safety while optimizing efficiency.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMS-125 |
| Main Body options |
|
| Pedestal model | FSS-125 |
| Control method | Double control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | upto 125kg |
|---|---|
| Max. working radius | R2190mm |
| Operating air pressure | 0.54MpaG |
| Air consumption | 134NL/min（Approx. 15s cycle time） |
1kg≒2.205lb, 1mm≒0.03937in
