Internal Clamp Case1

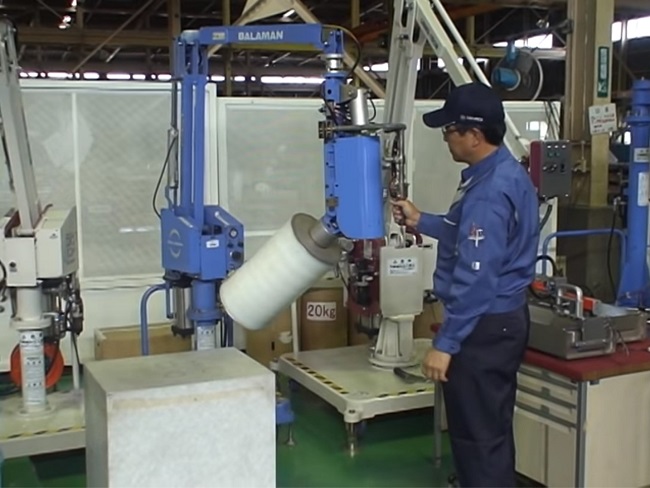

Designed and developed for handling reels. Handles reels by clamping the inner surface of the paper core. After clamping reels can be inverted too.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMG-50W |
| Main Body options |
|
| Pedestal model | SNG-50W（Floor mobile） |
| Control method | Regulator control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 30kg |
|---|---|
| Max. working radius | R1905mm |
| Operating air pressure | 0.49MPaG |
| Air consumption | 88NL/min（Approx. 10s cycle time） |
| Net weight(W/P not included) | 525kg |
1kg≒2.205lb, 1mm≒0.03937in
