Internal Clamp Case3

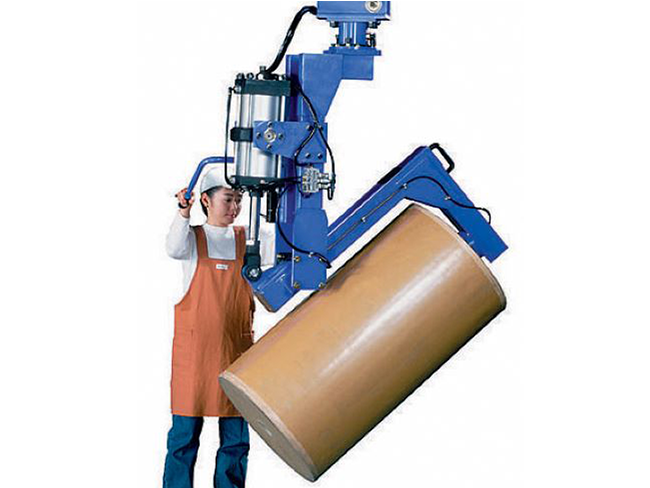

Designed and developed for handling reels. Handles by clamping the inner surface of the reel. After clamping, reels can be inverted too. By using this end effector you can save labor while improving the working environment.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMF-375W |
| Main Body options |
|
| Pedestal model | SNF-375W (Floor mobile) (Special) Fort inserting guides without casters |
| Control method | Regulator control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 230kg |
|---|---|
| Max. working radius | R2260mm |
| Operating air pressure | 0.49MPa |
1kg≒2.205lb, 1mm≒0.03937in
