Vacuum Suction Case3

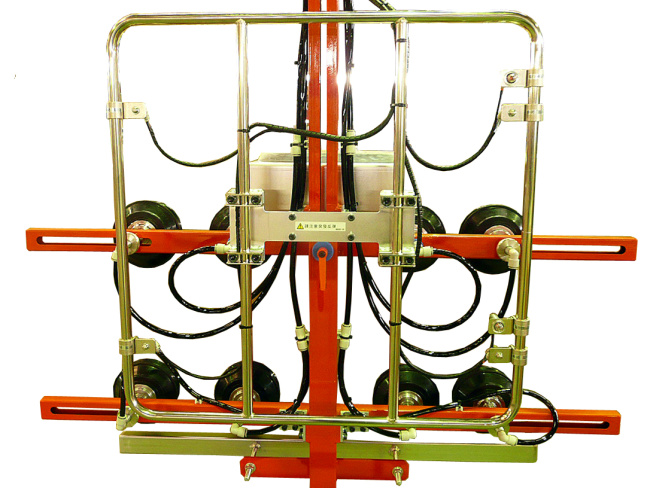

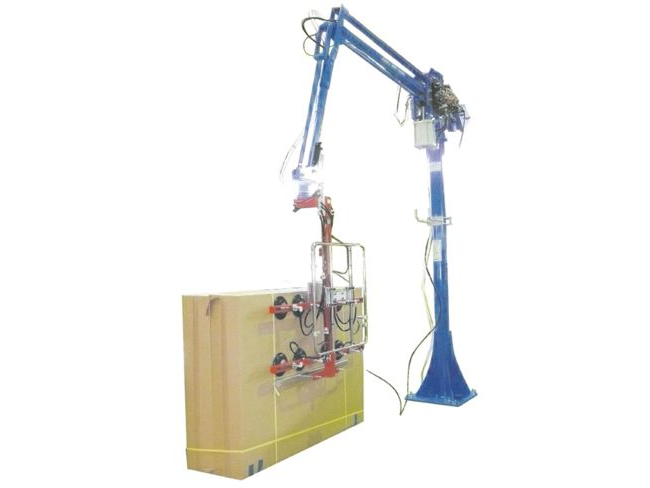

Designed and developed this end effector for stack cardboard boxes on pallets and conveyors by vacuuming the side surface of the cardboard box. It makes the handling and stacking of cumbersome cardboard boxes effortless.
- Prev
- Next
Specification
| Type | Pneumatic BALAMAN |
|---|---|
| Model | BMF-150W |
| Main Body options |
|
| Pedestal model | FSF-150W（Floor mount） |
| Control method | Regulator control |
| Control options |
|
| End Effector |
|
Information
| Workpiece weight | 65kg |
|---|---|
| Max. working radius | R2520mm |
| Operating air pressure | 0.49MPaG |
| Air consumption | 196NL/min（Approx. 10s cycle time） |
| Power supply | AC380V-50Hz |
| Rated current | 2.7A |
| Net weight(W/P not included) | 476kg |
1kg≒2.205lb, 1mm≒0.03937in
